Concrete Forms Cages

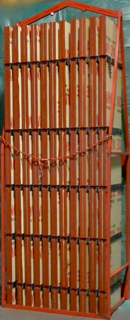

Panel Cage

A Panel Cage is designed to hold 22 panels.

Standard panel cage heights are 4' / 5' / 6' / 8' / 9' / 9'4"

4' Cage Height is 6'5"

5' Cage Height is 6'5"

6' Cage Height is 9'5"

8' Cage Height is 9'5" (built to cary 8' and 8'6" Forms)

9' Cage Height is 9'11"

9'4" Cage Height is 10'4"

Other cage heights available on request.

Cages

Cages are built and designed to transport forms from jobsite to jobsite.

Using cages to load and unload your forms saves labour and cuts down on cost by preventing damage to your equipment.

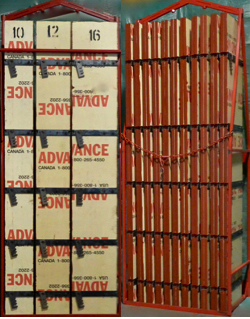

Filler Cage

A Filler Cage are designed to hold approximately 39 pieces. The standard spacing slots are 10", 12", 16".

Standard filler cage heights are 4' / 5' / 6' / 8' / 9' / 9'4"

4' Cage Height is 6'5"

5' Cage Height is 6'5"

6' Cage Height is 9'5"

8' Cage Height is 9'5" (built to cary 8' and 8'6" Forms)

9' Cage Height is 9'11"

9'4" Cage Height is 10'4"

Other cage heights available on request.

8' 5 Bar x 24" Panel

The 8' 5 Bar Panel...........

To build above 8' our build up ties a wedges can be used see (Form Ties) for more info. Bar Space is:8-22-38-56-76

8'6" 5 Bar x 24" Panel

The 8'6" 5 Bar space system is very versatile form with the ability to be able to pour down inside the form at the 8' mark or pour a 9' wall with 2x8 ladder.

The 8'6" (5 Bar) Panels and Fillers fit into an " 8' Cage ".

8' 4 Bar x 24" Panel

The 8' 4 Bar System uses less ties saving time and money. the top bar is 20" from the top of form

Bar Space is:8-28-52-76

Custom Bar Space

We can order or help you design any bar space to fit your current or future forming needs. Just send us the measurments from the bottom of form to center of Bar(s). Give us call today and see the difference in quality and customer service we can provide to your business.
