Concrete Forms Ties
We carry the largest inventory of 1 1/8" form accessories in Western Canada
Dependable Ties For All Your 1 1/8" Forming Needs
Econo Ties (4" to 12")
Advance ties are available in 1" increments, from 4" through 144" walls. All are designed for easy break-off to speed up stripping.

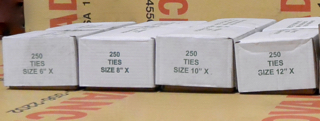

4" to 12" Ties are sold in boxes of 250 ties per box.
Econo Ties (13" to 144")
Advance ties are available in 1" increments, from 4" through 144" walls. All are designed for easy break-off to speed up stripping.

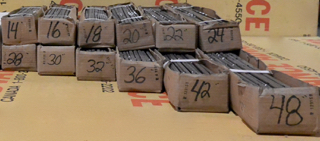

13" to 48" Ties are sold in boxes of 100 ties per box. 49" to 144" are sold in bundles of 25 ties per bundle.
Cone Ties (Comes in Standard Sizes)
The Advance cone tie is 3000lb tie with a maximum working load of 4500 lbs. This tie features a 1-1/2" break back with a cone. The cone tie is designed for commercial applications requiring a thermally broken wall.
Form Clip Ties

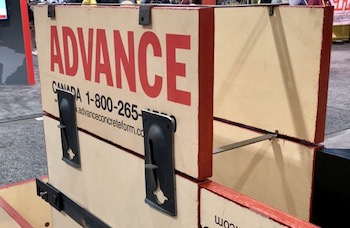

Use Form Clips on top and bottom of 1 1/8" plywood. Set-up is fast and simple. No need to drill panels. Stripping is quick and easy. Plywood is ready for immediate re-use.
Form Clip ties are available from 6" to 16" larger sizes in volume are a special order item.
Snapie Ties
For use in build up. Wall sizes 6" thru 12" available. Packaged 100 pieces per box.

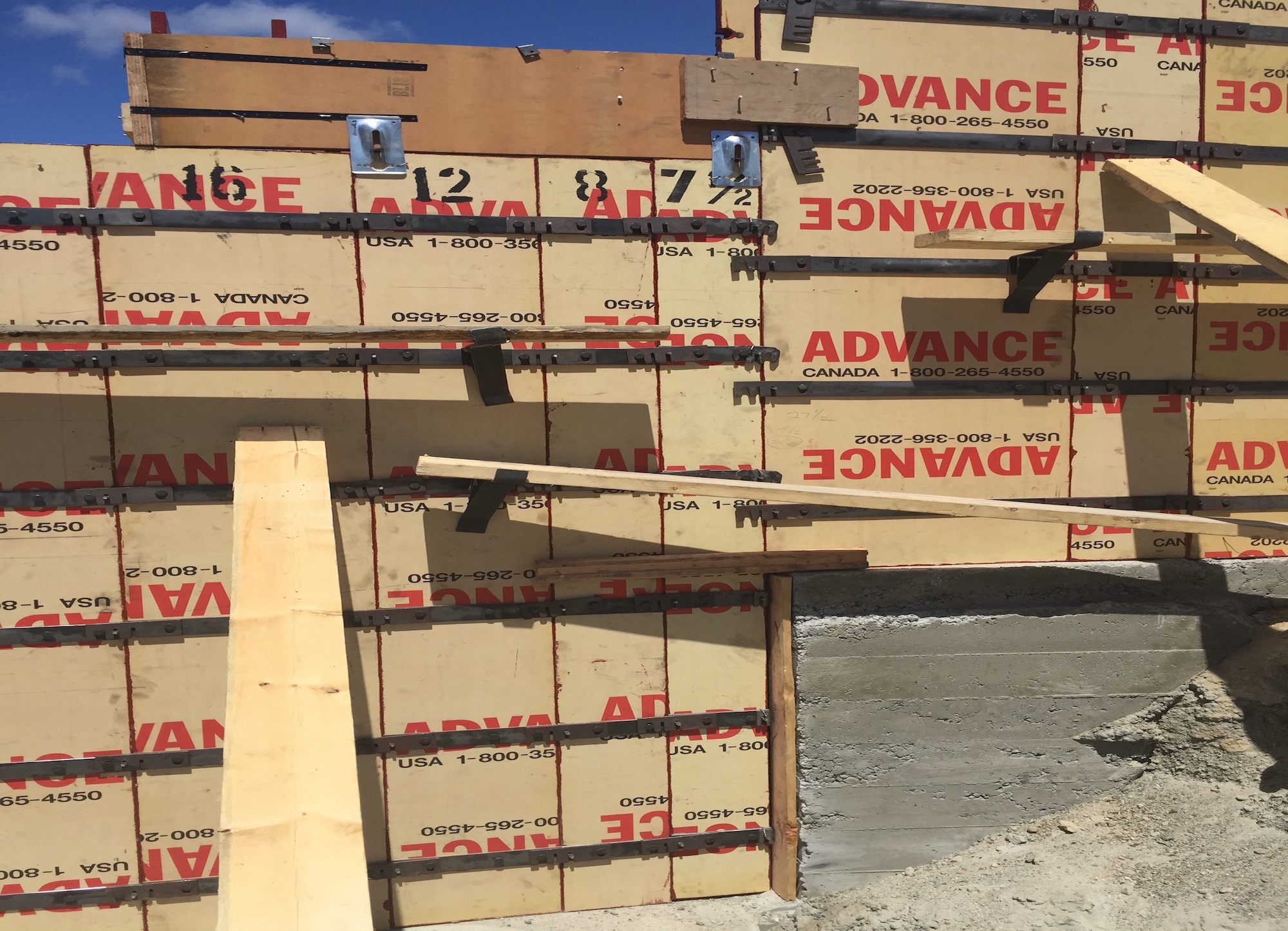

To go over typical form height a snapie tie and wedge will be required. (See Photo) for visual of application.

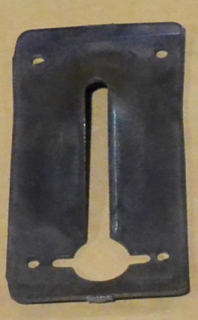

Wedges
For use with Snapie Ties. Packaged 50 per box.
8' 4 Bar x 24" Panel
The 8' 4 Bar System uses less ties saving time and money. the top bar is 20" from the top of form
Bar Space is:8-28-52-76
